36V 100Ah 36.8V LiFePO4 Golf Cart Battery, 200A BMS, 5000+ Cycles Lithium Battery, 5 yrs Warranty
Lithium iron phosphate (LiFePO4) battery packs have gained popularity as a preferred choice for golf carts due to several compelling reasons. Firstly, LiFePO4 batteries offer a higher energy density compared to traditional lead-acid batteries commonly used in golf carts. This means that they can store more energy in a smaller and lighter package, allowing the golf cart to travel longer distances on a single charge.
Specifiaction of 36V 80Ah and 100Ah batteries :
| Rated voltage | 36V | 36V |
| Capacity (Ah) | 80Ah | 100Ah |
| Battery Energy | 2944Wh | 3680Wh |
| Self-discharge | ≤3% per month at 25 | ≤3% per month at 25 |
| Cycle life | >5000 cycles | >5000 cycles |
| Charge Mode | CC/CV | CC/CV |
| Charge Cut-off Voltage | 43.8V | 43.8V |
| Recommended Charge Current | 10A-50A | 30A-75A |
| Max. Continuous Charge Current | 100A | 100A |
| Max. Continuous Discharge Current | 160A | 200A |
| Max. Pulse Current | 180A 120S | 220A 120S |
| 350A/20S | 400A/20S |
| Discharge Cut-off Voltage | 26.4V | 26.4V |
| Communication mode | UART/RS485/CAN | UART/RS485/CAN |
| Storage temperature | 0~45℃ | 0~45℃ |
| Working Environment | 0℃~+55℃(Charge) | 0℃~+55℃(Charge) |
| -20℃~+65℃(Discharge) | -20℃~+65℃(Discharge) |
| Housing Material | Metal case | Metal case |
| Bluetooth 5.0 | Yes | Yes |
| Display Screen | Optional | Yes |
| Touch display | Optional | Optional |
| OEM & ODM | Yes | Yes |

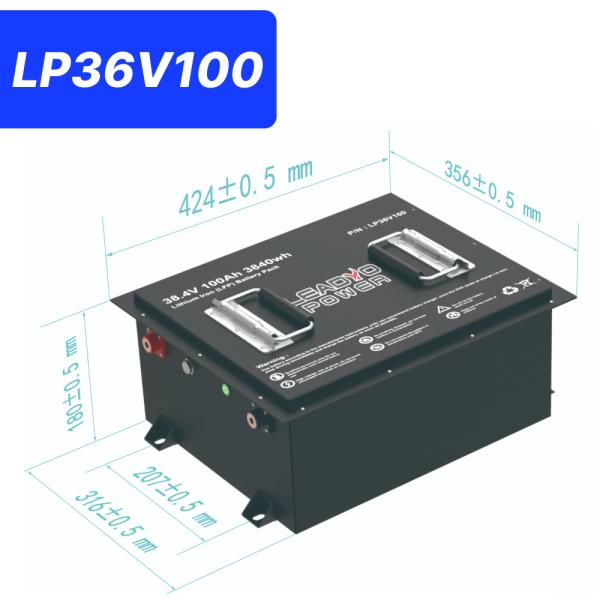

| Dimension (mm) | 400*275*200mm | 424*356*180mm |
| Weight | 70.4lbs.(32kg) | 77.16lbs.(35kg) |

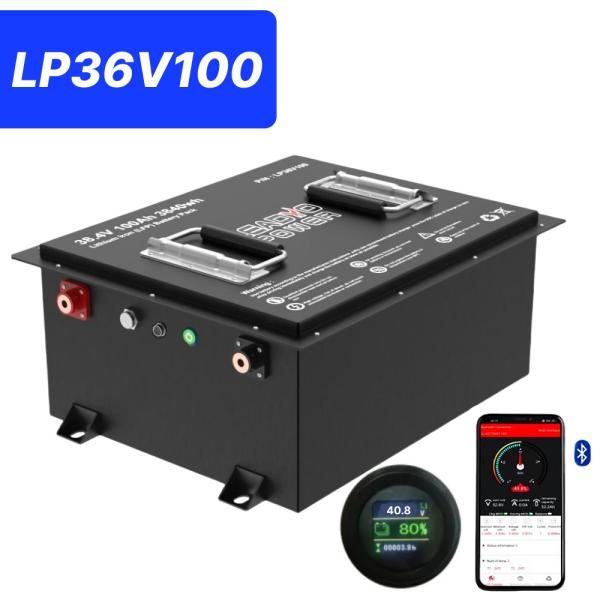

1 X 36.8V 100Ah Battery Pack including round LCD display and Bluetooth (Touch display is optional )
( RS485 or Canbus com can be provided )
1 X Charger 20A
1 X AC Plug
(12V reducer for optional, and mounting brackets can be provided )
FAQ
1. Do you provide OEM/ODM service ?
Yes ,can customized your brand battery
2.Do you have MOQ requests?
NO ,We don't have.
3.When you delivery order?
Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.
5.May i get the golf cart lifepo4 battery with different capacity and voltage ?
Yes,please contact us.
6.How to get a quote?
Please contact us,leadyo@leadyo-battery.com
